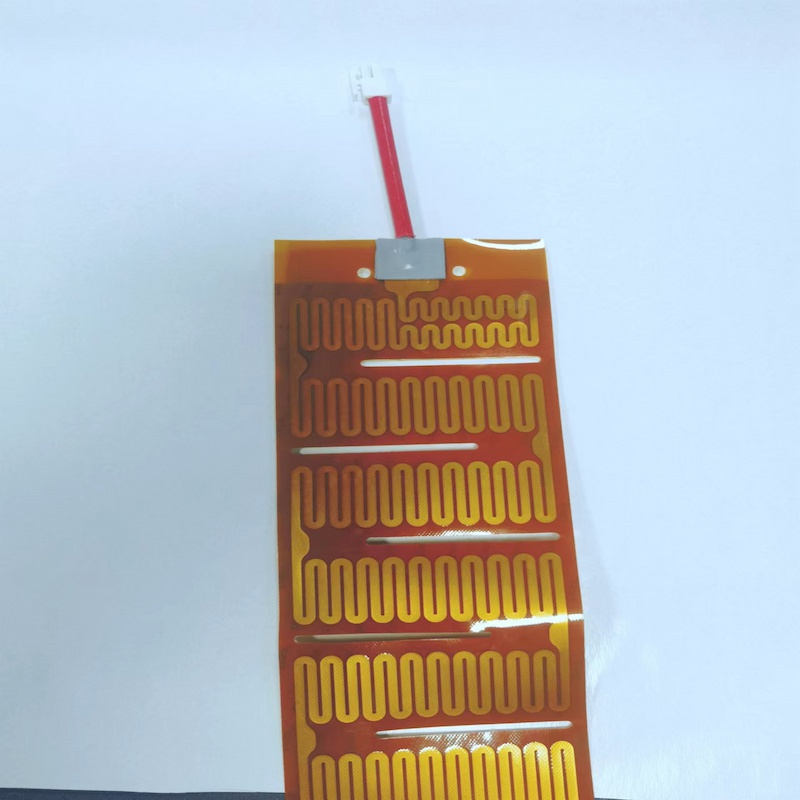

Polyimide heater is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters.It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -60 degree celsius to 250 degree Celsius
12V 24V PI heating film (polyimide film)
Product features: Light weight, small size, uniform heating, excellent softness, and fast heating.
Technical parameters:
Product thickness: 0.10-0.35mm
Operating temperature: ≤ 250℃
Insulation resistance: voltage 1000VDC, insulation resistance ≥ 500M Ω,
Pressure resistance strength: 100-300KV/mm
Power density range: 0.01W/CM ²~0.5W/CM ²
| Attribute | Details |
| Material | polyimide |
| Key Selling Points | Easy to Operate |
| Condition | New |
| Brand Name | Yuheng Flexible Heating Film |
| Dimension(L*W*H) | Customized |
| Working Temperature Range | 1 - 200 ℃ |
| Warranty of core components | 1 Year |
| Core Components | Other |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Maximum size | 1000m~1200m |
| Minimum size | 20mm*20mm |
| Ambient Temperature | -60~200℃ |
| Maximum thickness | 0.15mm-0.25mm |
| Insulation resistance | ≥5MΩ |
| Power deviation | +-5% |
| Wire Type | Silicone braided wire |
| Voltage range | 1.5v to 400v |
| MOQ | 10 Pieces |
